NON-STOCKED ITEM - MANUFACTURED UPON ORDER - ETA 6-8 WEEKS

PRODUCT DETAILS

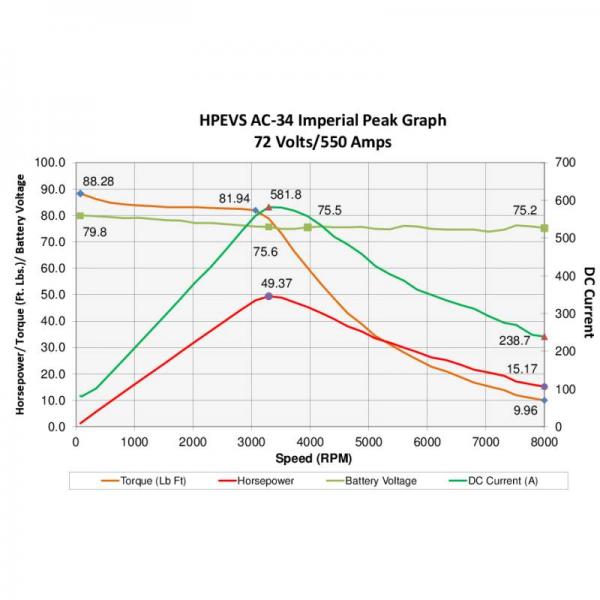

The AC-34 is an AC motor that operates at 48-80V. It can draw up to 550A producing up to 48 HP (36 kW) and 108 ft-lbs (147 Nm) of torque. This kit works very well in medium sized cars & lightweight vehicles. Features include regenerative braking as well as an idle function. At 72 volts, it makes a safer low voltage system that will give you lots of reliable EV miles.

Its right for you if:

You have a medium sized car or lightweight vehicle you wish to convert to electric on a budget.

The tech you get:

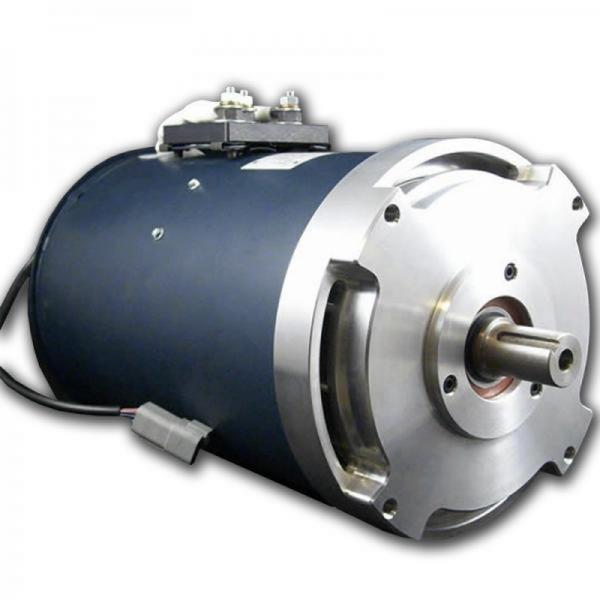

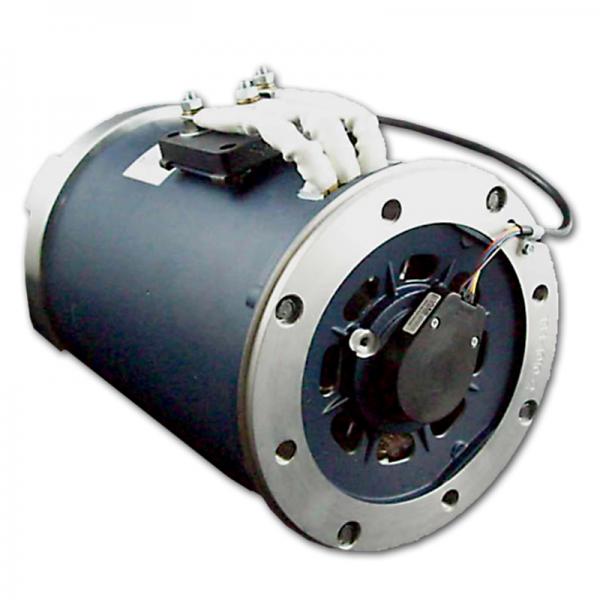

• HPEVS AC34 Motor
• Curtis 1238-6521 Controller
• 35 Pin Connector and Wire Harness
• Gigavac GV200-QA Contactor
• 12 Volt HV Relay
• Curtis 840 Dash Gauge
• SPST Menu Button
• SPST Mode Switch

The final word:

A practical and safe medium sized project power plant.

Specifications

• Motor Face: B-Face
• Motor Diameter: 8.980 Inches
• Motor Case Length: 12.80 Inches
• Motor Shaft to Shaft Length: 14.8 Inches
• Motor Shaft to End Length: 14.8 Inches
• Motor Type: AC Induction Brushless
• Weight: 85 lbs (38.5 Kg)
• Max Voltage Input: 80
• Terminal Stud Size: 5/16 Inch
• Integrated Sensors: Encoder and Temperature
• Rated Torque: 108 Lb Ft
• Rated Power: 48 HP
• Max RPM: 10,000
• RPM Sensor: Yes
• Drive End Shaft: 1 1/8 Inch With 1/4 Inch Keyway
• Accessory End Shaft: Optional 7/8 Inch With 3/16 Keyway
• Max Efficiency: 0.92
• Thermal Cooling: Internal Fan
• Max Temperature: 180 Degrees Celsius (356 Degrees Fahrenheit)
• Matching Controller Included In Price: Curtis Controller 1238e-7621

Data Sheet - Click Here
