NON-STOCKED ITEM - MANUFACTURED UPON ORDER - ETA 6-8 WEEKS

PRODUCT DETAILS

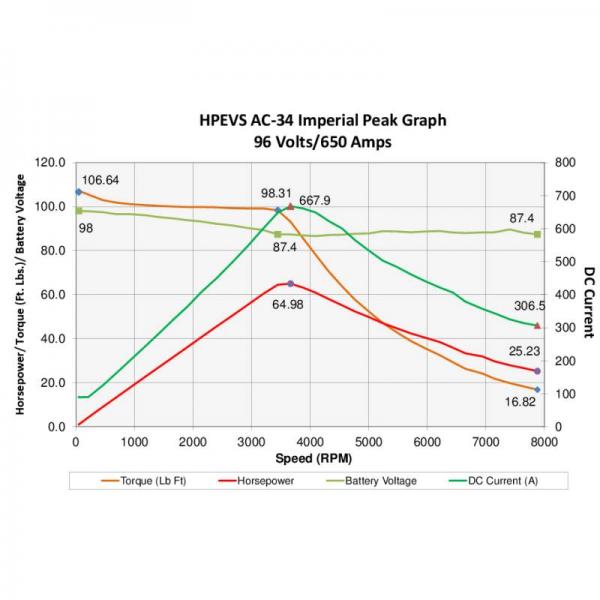

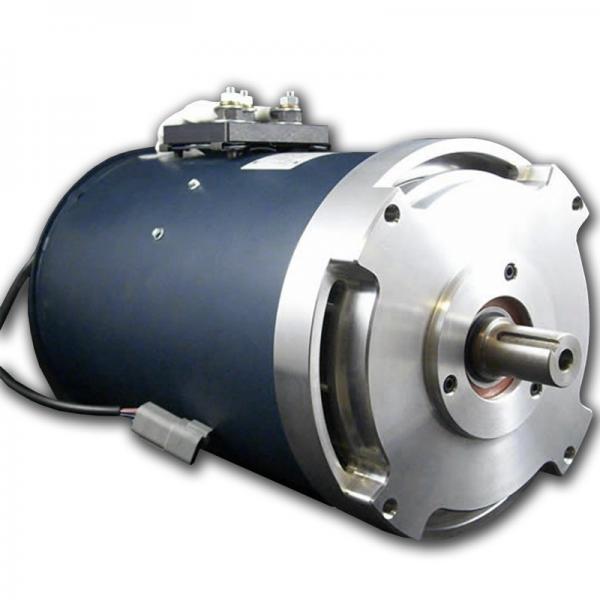

The AC-34 is an AC motor that operates at 72-128V. It can draw up to 900A producing up to 65 HP (49kW) and 106 ft-lbs (144 Nm)of torque. This kit works very well in medium sized cars and lightweight vehicles. Features include regenerative braking as well as an idle function. At a modest 108 volts it makes a safer low voltage system that will give you lots of reliable EV miles.

Its right for you if:

You have a medium sized car or lightweight vehicle you wish to convert to electric on a budget.

The tech you get:

• HPEVS AC34 Motor
• Curtis 1238SE-7971 Controller
• 35 Pin Connector and Wire Harness
• Gigavac GV200-QA Contactor
• 12 Volt HV Relay
• Curtis 840 Dash Gauge
• SPST Menu Button
• SPST Mode Switch

The final word:

 A practical and safe medium sized project power plant.

Specifications

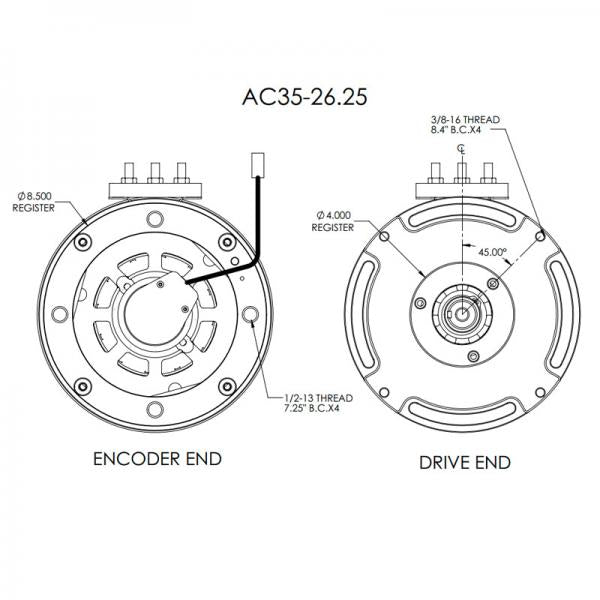

• Motor Face: B-Face

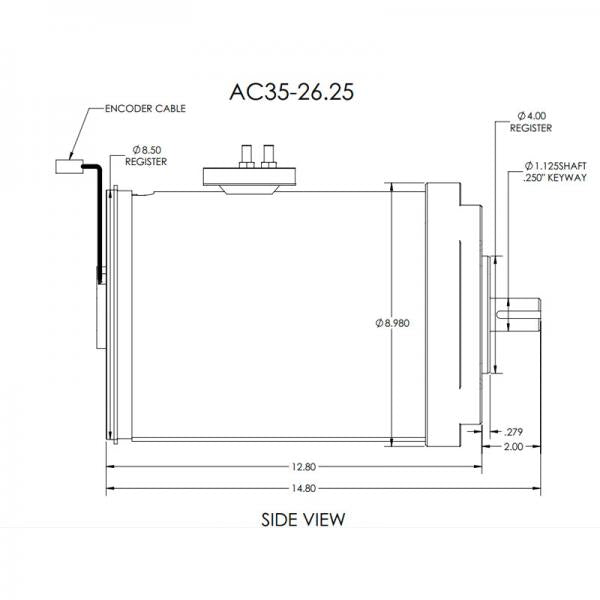

• Motor Diameter: 8.980 Inches
• Motor Case Length: 12.8 Inches
• Motor Shaft Length End to End: 17.5 Inches
• Motor Type: AC Induction
• Brushes: No
• Interpoles: No
• Weight: 52 Kg (115 lbs)
• Max Voltage Input: 130
• Terminal Stud Size: 3/8 Inch
• Integrated Sensors: Encoder
• Rated Torque: 106 Lb Ft
• Rated Power: 63 HP
• Continuous RPM: 5,000
• Max RPM: 10,000
• RPM Sensor: No
• Drive End Shaft: 1 1/8 Inch With 1/4 Inch Keyway
• Acc/Commutator End Shaft: Optional 7/8 Inch With 3/16 Keyway
• Timing: N/A
• Max Efficiency: 88%
• Thermal Cooling: Internal Fan
• Max Temperature: 180 Degrees Celsius (356 Degrees Fahrenheit)
• Matching Controller Included In Price: Curtis Controller 1238e-7621

Data Sheet - Click Here
